- the modern aluminium system for designing windows and doors requiring very good thermal insulation

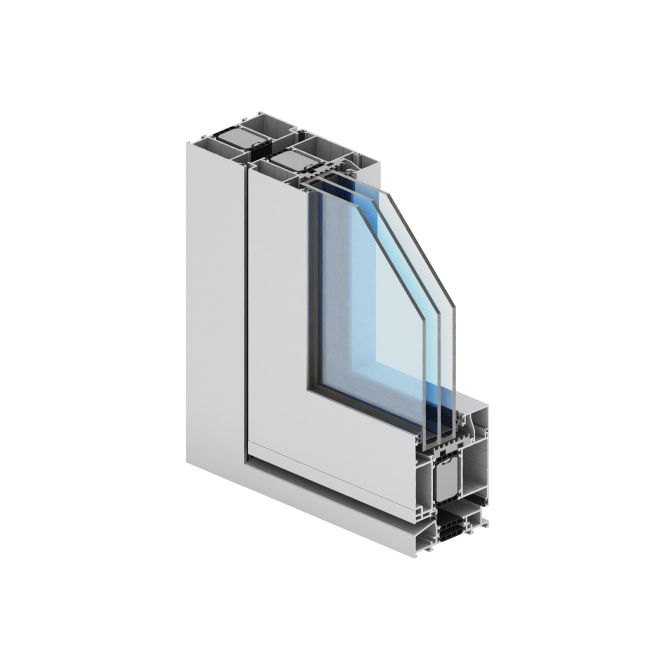

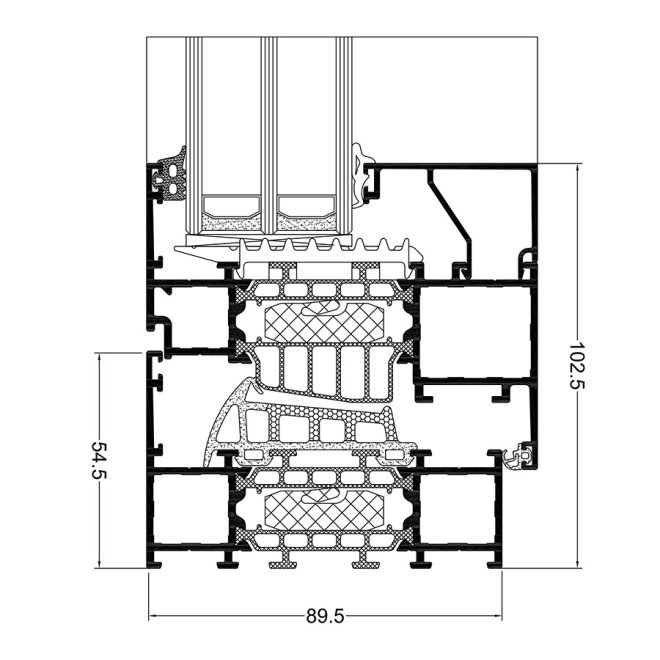

- Genesis 75 system is based on 75 mm deep sections use to build frames
- Genesis 75 is a system intended for designing windows and doors structures in public access buildings as well as single-family and multi-unit residential buildings
- a wide range of sections/profiles available in the offer of the Genesis 75 system is used to design modern windows, doors and display units that ensure high functionality
- the Genesis 75 system incorporates modern insulation materials that have just been launched onto the market; apart from a conventional central gasket, an additional thermal gasket has been developed as well; with this solution, it is possible to attain very excellent tightness of windows (air infiltration, water-tightness) as well as innovative appearance and aesthetics
- the system will allow the customer to select various finish options for profiles so that the window structure can be customised (renovation profiles)
- GN 75 system also allows to make a corner-to-corner combination of 90 degrees to achieve an impressive glass surface.
- Genesis 75 system sets a new standard of window thermal performance, with the highest ergonomics of use and modern profile aesthetics maintained
- on the basis of the GN75 door system can also be made panel doors
- system options available: Genesis OUT (outward opening windows), Genesis SU (hidden sash)
- there is possibility of use Flyscreen and Insect System
- a wide range of colours available – RAL palette (Qualicoat 1518), structural colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL – 0001), bi-colour, anodized (Qualanod 1808)
TECHNICAL SPECIFICATION
SYSTEM MATERIAL DEPTH OF FRAME
DEPTH OF LEAF
GLAZING RANGE ACOUSTIC TYPE OF WIDNOWS TYPE OF DOORS GT window aluminium/ thermal insulation 90 mm 99 mm fix 14-72 mm / 23-81 mm 48 (-2,-5) dB wall, fix, tilt and turn – GT door aluminium/ thermal insulation 90 mm 99 mm 14-72 mm 45 (-1,-3) dB – single and double doors, outside and inside opening
| SYSTEM | MATERIAL | DEPTH OF FRAME | DEPTH OF LEAF | GLAZING RANGE | ACOUSTIC | TYPE OF WIDNOWS | TYPE OF DOORS |
| GT window | aluminium/ thermal insulation | 90 mm | 99 mm | fix 14-72 mm / 23-81 mm | 48 (-2,-5) dB | wall, fix, tilt and turn | – |
| GT door | aluminium/ thermal insulation | 90 mm | 99 mm | 14-72 mm | 45 (-1,-3) dB | – | single and double doors, outside and inside opening |
PERFORMANCE
SYSTEM THERMAL INSULATION UF* AIR PERMEABILITY
WINDLOAD RESISTANCE
WATERTIGHTNESS GT window Uf from 0,73 W/m2K Class 4; PN-EN 12207 Class C5/B5; PN-EN 12210 Class E900; PN-EN 12208 GT door Uf from 1,21 W/m2K Class 4; PN-EN 12207 Class C5/B5; PN-EN 12210 Class E1350; PN-EN 12208
| SYSTEM | THERMAL INSULATION UF* | AIR PERMEABILITY | WINDLOAD RESISTANCE | WATERTIGHTNESS |
| GT window | Uf from 0,73 W/m2K | Class 4; PN-EN 12207 | Class C5/B5; PN-EN 12210 | Class E900; PN-EN 12208 |
| GT door | Uf from 1,21 W/m2K | Class 4; PN-EN 12207 | Class C5/B5; PN-EN 12210 | Class E1350; PN-EN 12208 |
*Thermal insulation is dependent on a combination of profiles and thickness of the filling
