Imperial i+ | Scandinavia Windows

the system is designed for windows, doors and shop windows with high thermal insulation parameters
high thermal insulation power was achieved by applying special thermal inserts slid between thermal separators and around the glass pane
large number of shapes in the system guarantees obtaining desired appearance and structural strength
option of installing windows in facade systems
glazing strips available in rectangular and circular variant
shapes of profiles suitable for installation of various peripheral hardware, including hidden hinges and pvc hardware
a wide range of glazing allows using all types of single and double cavity, acoustic and anti-burglary glass panes
profile drainage in two variants: traditional and hidden
option of bending profiles (detailed specification of profiles and detailed technical parameters of profile bending process are available in the customer area of the website www.aliplast.pl)
the system is desiged for use in residential and public buildings, and also allows designing modern window solutions in multiple variants

TECHNICAL SPECIFICATION

SYSTEM	MATERIAL	DEPTH OF FRAME	DEPTH OF LEAF	GLAZING RANGE	ACOUSTIC	TYPE OF WINDOWS
IP i	aluminium/ polyamid	65 mm	74 mm	4-51 mm	43 (-2,-4) dB	single and double windows, outside opening, inside opening
IP i+	aluminium/ polyamid	65 mm	74 mm	4-51 mm	43 (-2,-4) dB	single and double windows, outside opening, inside opening

*Thermal insulation is dependent on a combination of profiles and thickness of the filling

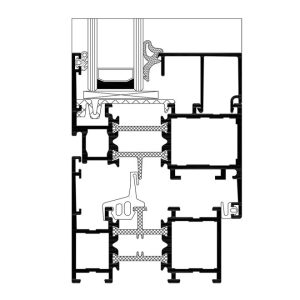

CROSS-SECTIONS

VISUALISATIONS

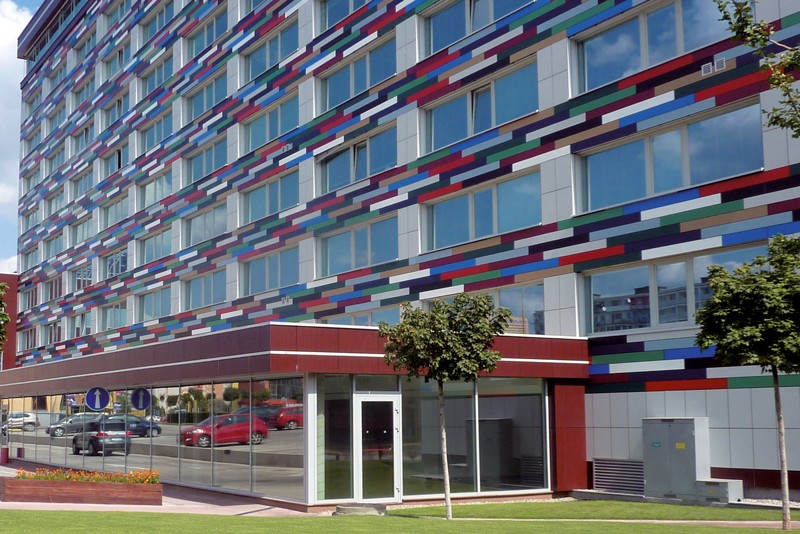

REALIZATIONS

CROSS-SECTIONS

VISUALISATIONS

REALIZATIONS
