- a parallel window system used to design window which are positioned in parallel to facade when opened; the system is provided with thermal insulation; the parallel window is a solution based on the MC Wall facade system; with this solution, uniform appearance of the aluminium-glass wall can be maintained when the window is opened.
- a parallel window system used to design windows which are positioned in parallel to facade when opened
- MC PW is a three chamber system with thermal insulation; it is optional to use additional insulating components to improve thermal aspects of the structure (under-glass inserts, inserts between thermal separators)
- the sash is moved outwards using special scissors mechanism adapted to that purpose;the arrangement of scissors mechanisms and their number depends on the window sash size and glass weight; the scissors mechanism can be used together with multi-point hardware locking points suitable for the overall dimensions, which significantly improves window tightness; the window can be opened manually using two opposite handles or electrically by means of special servo-motors suitable for that purpose
- the MC-PW windows can be designed as top-hung (the lower part is lifted outwards)
- the system ensures optimum ventilation in the room; once moved out, the sash enables free airflow in both directions: inwards and outwards; compared to traditional windows, this solution offers more optimum air circulation and much better comfort of use
- a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour
TECHNICAL SPECIFICATION
SYSTEM MATERIAL DEPTH OF FRAME DEPTH OF LEAF GLAZING RANGE TYPE OF WINDOWS
TYPE OF GLAZING MC PW aluminium/ polyamid
117 mm 98-115,3 mm 24-52 mm parallel window
structural, glazing strip
| SYSTEM | MATERIAL | DEPTH OF FRAME | DEPTH OF LEAF | GLAZING RANGE | TYPE OF WINDOWS | TYPE OF GLAZING |
| MC PW | aluminium/ polyamid | 117 mm | 98-115,3 mm | 24-52 mm | parallel window | structural, glazing strip |
PERFORMANCE
SYSTEM THERMAL INSULATION UF* AIR PERMEABILITY WINDLOAD RESISTANCE
WATERTIGHTNESS MC PW Uf from 1,65 W/m2K Class 4; EN 12207
C5 (2000 Pa); EN 12210 E2400 (2400 Pa); EN 12208
| SYSTEM | THERMAL INSULATION UF* | AIR PERMEABILITY | WINDLOAD RESISTANCE | WATERTIGHTNESS |
| MC PW | Uf from 1,65 W/m2K | Class 4; EN 12207 | C5 (2000 Pa); EN 12210 | E2400 (2400 Pa); EN 12208 |
*Thermal insulation is dependent on a combination of profiles and thickness of the filling

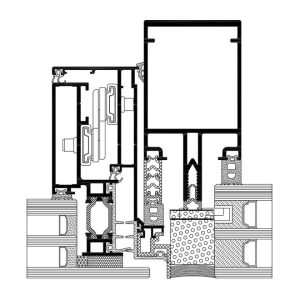

CROSS-SECTIONS

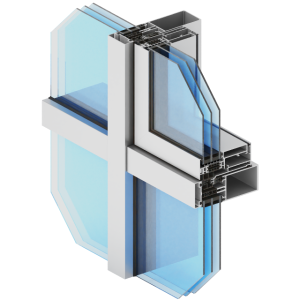

VISUALISATIONS

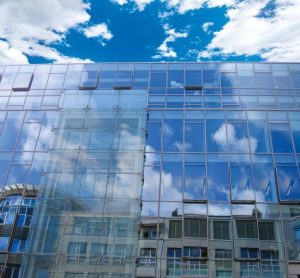

REALIZATIONS
