the three-chamber window-door system for designing windows and doors featuring high thermal performance; the system features very good technical parameters
an aluminium profile system with a thermal insert, used in locations where higher thermal performance is required
the Ecofutural system is available in a version with improved thermal performanc
options offered within the ECOFUTURAL system:ECOFUTURAL (i) – with thermal insulation on the perimeter in the spot where the window pane touches the profile; ECOFUTURAL (i+) – with thermal insulation on the perimeter in the spot where the window pane touches the profile and thermal insulation within the space between thermal inserts;
the system is suitable to design Monoblock type windows and doors with a displaced axis of rotation – PIVOT doors
profile shapes are suitable for installation of various types of envelope fittings, designed for the PVC groove the profiles can be bent; for a precise profile specification and details of technical parameters relating to profile bending, visit www.aliplast.pl and go to the customer zone
a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour

TECHNICAL SPECIFICATION

SYSTEM	MATERIAL	DEPTH OF FRAME	DEPTH OF LEAF	GLAZING RANGE	TYPE OF WINDOWS	TYPE OF DOORS
EF	aluminium/ polyamid	65-153 mm	74 mm	fix 4-50 mm / window 13-59 mm	fix, tilt, turn, tilt and turn	single and double doors

*Thermal insulation is dependent on a combination of profiles and thickness of the filling

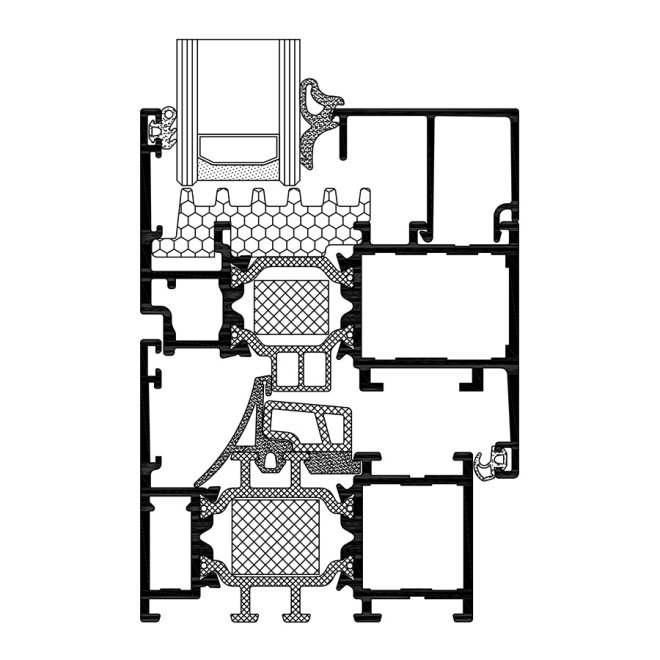

CROSS-SECTIONS

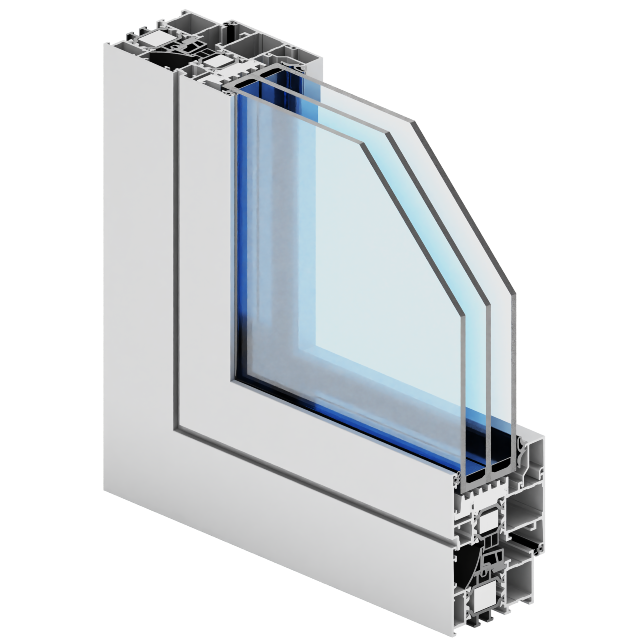

VISUALISATIONS

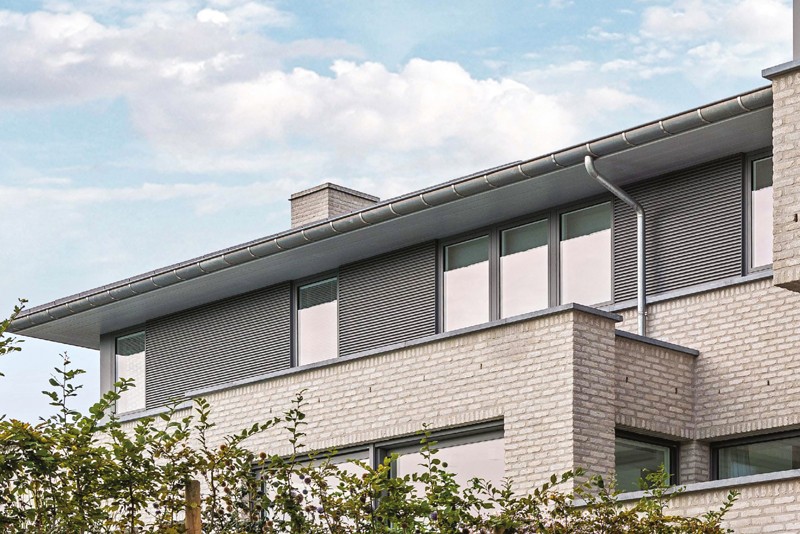

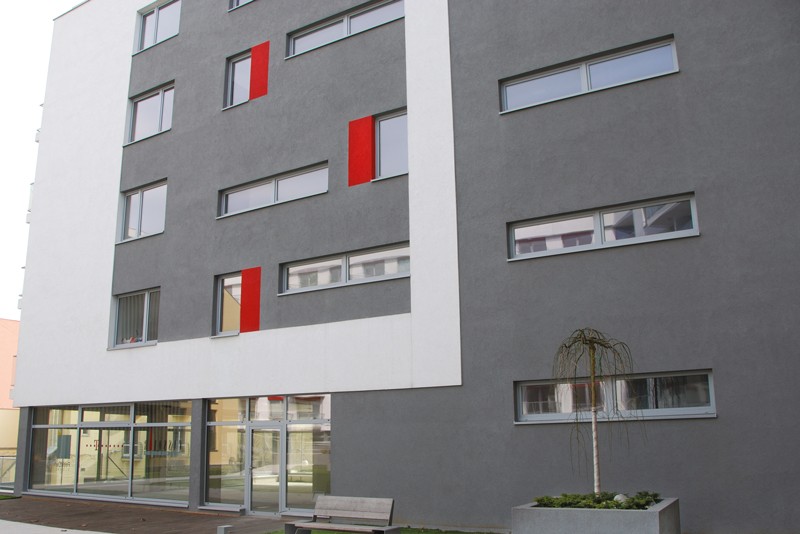

REALIZATIONS

CROSS-SECTIONS

VISUALISATIONS

REALIZATIONS
