Baufen – Ultima 70

Scandinavia Windows > Systems > Baufen – Ultima 70

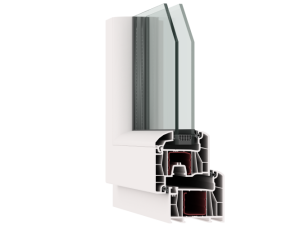

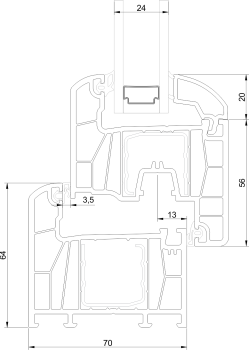

  • 6-chamber system with a base width of 70 mm
  • Optimal performance for sound and thermal insulation
  • Possibility for glazing and glass panes with different width – 24 mm, 32 mm and 36mm
  • Possibility of placing two handles in case of dependent opening double windows, according to the latest trends in casing
  • Two-barrier sealing with TPV gasket for better thermal insulation in a wide temperature range.
  • Easy installation of all types of standardized fitting (center of the system 13 mm)

Technical characteristics

Thermal transmittance – 1.2 W/m2K
Sound insulation- 40 dB
Water tightness- Class А8
Air permeability – Class 4
Resistance to wind load- Class 3C

*The values are calculated with 36mm double glazing
